In Austria's Tyrol region, the Gruber family exemplifies energy independence with Dawnice Stacked ESS. Leveraging Austria's €200/kWh residential storage subsidy, they paired their rooftop solar with our space-saving stacked design that seamlessly integrates into mountain homes.

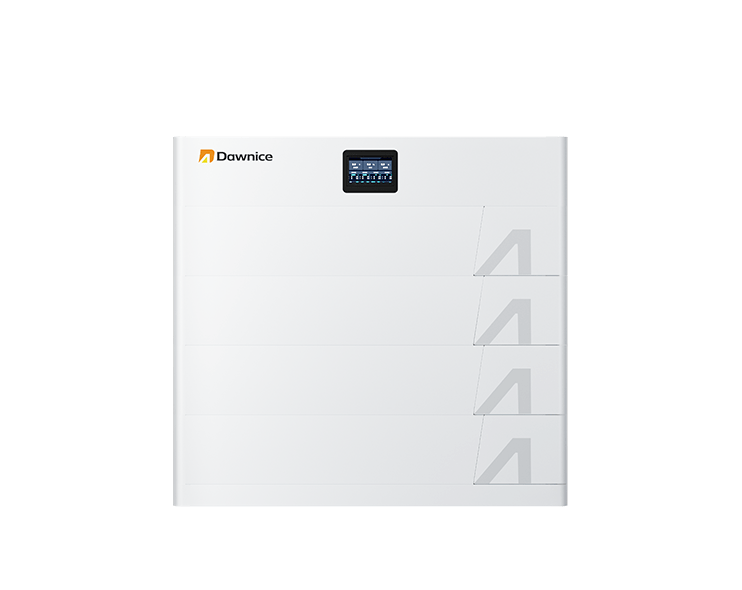

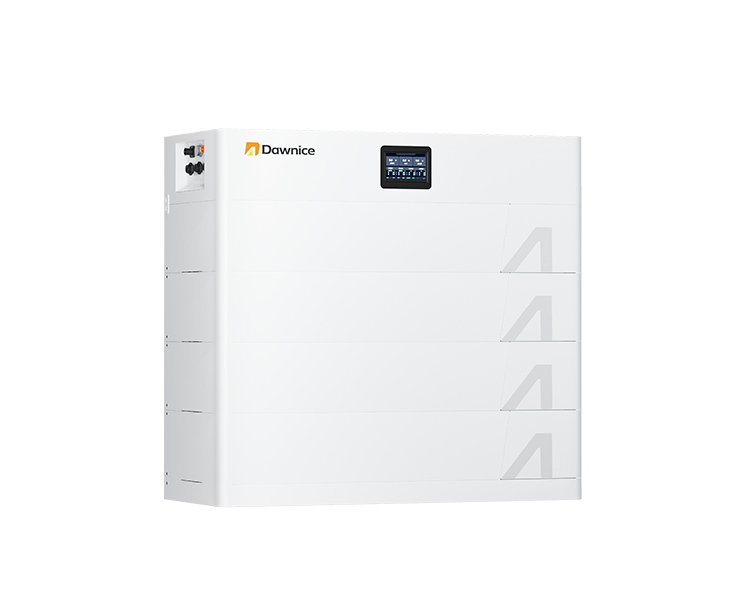

Six Ultra BS06-S

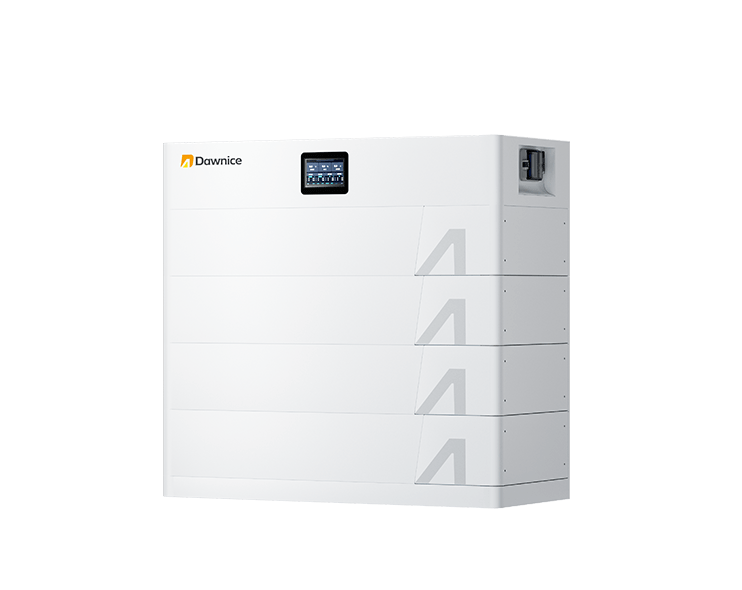

The Dawnice Six Ultra is a 7.68kWh high-voltage stackable system designed for flexible home energy storage. Built with advanced lithium technology, it offers the same reliable performance users expect from a 7.5kWh lithium battery while delivering higher efficiency, intelligent control, and scalable design for evolving household power needs.
Features
01
Ground - Mounted
Datasheet Residential ESS
02
Intelligent
Bluetooth and Wifi
03
Safety
Multi-protection from self developed BMS
04
Easy to Scale Up
Up to 5 battery clusters in parallel
05
Efficient Power Cost
Long cycle life and superior performance
-
High-Voltage Stackable Design
The HV battery system allows flexible stacking and easy scalability, perfect for expanding home energy storage needs.
-
Empower Your Energy Smarter
The Dawnice Six Ultra lithium battery combines higher energy density, intelligent BMS protection, IP65 waterproof design, and remote monitoring for maximum reliability. With 6000+ cycle life and high-rate charging capability, it delivers efficient, safe, and future-ready power for every household.
-
Power Every Moment at Home
The Dawnice Six Ultra lithium battery delivers stable, high-efficiency energy for diverse household needs—from daily lighting and appliances to EV charging and smart devices. Its modular stackable design and intelligent control ensure reliable power flow, helping families enjoy energy freedom and sustainability with ease.
Parameter
PERFORMANCE SPECIFICATIONS
MECHANICAL SPECIFICATIONS
SECURITY AND CERTIFICATION
ENVIRONMENTAL SPECIFICATIONS
PERFORMANCE SPECIFICATIONS
Model
BS06-15-S/2S
BS06-23-S/3S
BS06-30-S/4S
BS06-38-S/5S
Nominal Voltage
153.6V
230.4V
307.2V
384V
Cell model/Configuration
3.2V 100Ah/24S1P
3.2V 100Ah/24S1P
3.2V 100Ah/24S1P
3.2V 100Ah/24S1P
Capacity(Ah)
100Ah
100Ah
100Ah
100Ah
Rated Energy(kWh)
15.36kWh
23.04kWh
30.72kWh
38.40kWh
Max.Charge/Discharge Current(A)
50A
50A
50A
50A
Voltage Range(V)
134.4~172.8V
201.6~259.2V
268.8~345.6V
336~432V
Scalability
Up to 5 parallel
Up to 5 parallel
Up to 5 parallel
Up to 5 parallel
Communication
CAN/RS485
CAN/RS485
CAN/RS485
CAN/RS485
Cycle Life
≥6000Cycles@25°C, 90%DOD
≥6000Cycles@25°C, 90%DOD
≥6000Cycles@25°C, 90%DOD
≥6000Cycles@25°C, 90%DOD
MECHANICAL SPECIFICATIONS
Weight(kg)
184kg
259kg
334kg
409kg
Dimension(L/W/H)(mm)
870*450*530mm
870*450*690mm
870*450*850mm
870*450*1010mm
Installation Mode
Stackable
Stackable
Stackable
Stackable
IP Grade
IP65
IP65
IP65
IP65
SECURITY AND CERTIFICATION
Safety(Pack)
UN38.3.MSDS
Safety(Cell)
UN38.3.MSDS,IEC62619,CE,UL1973,UL2054
Protection
BMS and Breaker
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature(°C)
Charge 0°C~50°C; Discharge -10°C~-50°C
Altitude(m)
s2000m
Humidity
<90%(Non-condensing)
