At a Nigerian furniture factory facing 3-4 weekly power outages, Dawnice C&I ESS has revolutionized production stability. The 80kWh system features specialized dust and moisture protection with independent ventilation, engineered for tropical climate resilience.
Features
01
Wall - Mounted
Datasheet Residential BESS
02
Intelligent
Bluetooth and Wifi
03
Safety
Multi-protection from self developed BMS
04
Easy to Scale Up
Be workable to be parallel based on 51.2V
05
Efficient Power Cost
Long cycle life and superior performance
-

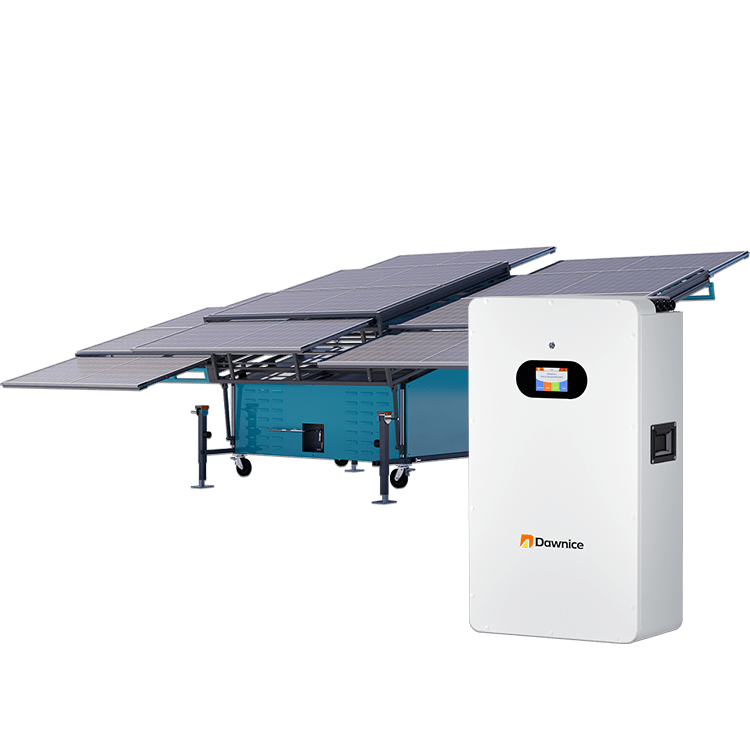

Power That Performs Outdoors
Our IP54-rated 32kWh lithiium battery ensures consistent energy supply under extreme conditions. Built to withstand rain and dust, it provides reliable and efficient power for residential and commercial settings.
-
Intelligent Remote Management
Equipped with Bluetooth, WiFi, and mobile app support, our energy storage system allows seamless remote control. Access real-time data and adjust power settings effortlessly from anywhere.
-
Smart BMS for Maximum Battery Safety
Featuring precise voltage and temperature monitoring, our intelligent BMS continuously supervises the performance of the mobile energy storage battery, identifying potential issues early to ensure safe and reliable operation.
Parameter
INVERTER SPECIFICATIONS
SOLAR PANEL SPECIFICATIONS
BATTERY SPECIFICATIONS
MECHANICAL SPECIFICATIONS
SECURITY AND CERTIFICATION
ENVIRONMENTAL SPECIFICATIONS
INVERTER SPECIFICATIONS
Model
LumiSun-32K
INVERTER OUTPUT
Rated Output Power
10,000W
Max.Peak Power
15,000W
Rated Output Voltage
230Vac（Single phase）
Load Capacity of Motors
6HP
Rated AC Frequency
50/60Hz
Waveform
Pure Sine Wave
Switch Time
10ms（typical）
Parallel capacity
1-6 Units
PV INPUT
Num. of MPP Trackers
2
Max.PV array power
5460W
Max.input current
22/22A
Max.Voltage of Open Circuit
500Vdc+500Vdc
MPPT Voltage Range
125-425Vdc
SOLAR PANEL SPECIFICATIONS
Solar panels Item No.
Jinko Tiger NEO 54HL4R-B 430-455W
Maximum power Pmax [W]
455
Max. PV array power
5460W
Optimum operating voltage Vmp [V]
33.58
Optimum operating current Imp [A]
13.55
Open-circuit voltage Voc [V]
10.17
Short-circuit current Isc [A]
14.01
Module efficiency [%]
22.8
Module dimensions
1762*1134*33mm
Module weight
21kg
BATTERY SPECIFICATIONS
Battery Type
LiFePO₄
Nominal Voltage
51.2V
Configuration
3.2V314Ah/1P16S
Capacity(Ah)
628Ah
Nominal Energy(kWh)
32.14kWh
Usable Energy(kWh@90%DOD)
28.94kWh
Max.Charge/Discharge Current(A)
150A
Voltage Range(V)
44.8~57.6V
Cycle Life (@25℃,90%DOD)
Warranty Period
Warranty Period
≥8000Cycles
Cycle Life
5+5 years
MECHANICAL SPECIFICATIONS
Weight(kg)
1.6t
Dimension(L/W/H)(mm)
5672×4500×2300cm
Folded Dimensions(W*D*H)
2325×2415×2300cm
IP Grade
IP54
SECURITY AND CERTIFICATION
Safety(Pack)
UN38.3.MSDS,IEC62619(CB).CE-EMC
Safety(Cell)
UN38.3.MSDS,IEC62619,CE,UL1973,UL2054
Protection
BMS
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature(°C)
Charge 0°C~50°C; Discharge -10°C~-50°C
Altitude(m)
s2000m
Humidity
<90%(Non-condensing)
