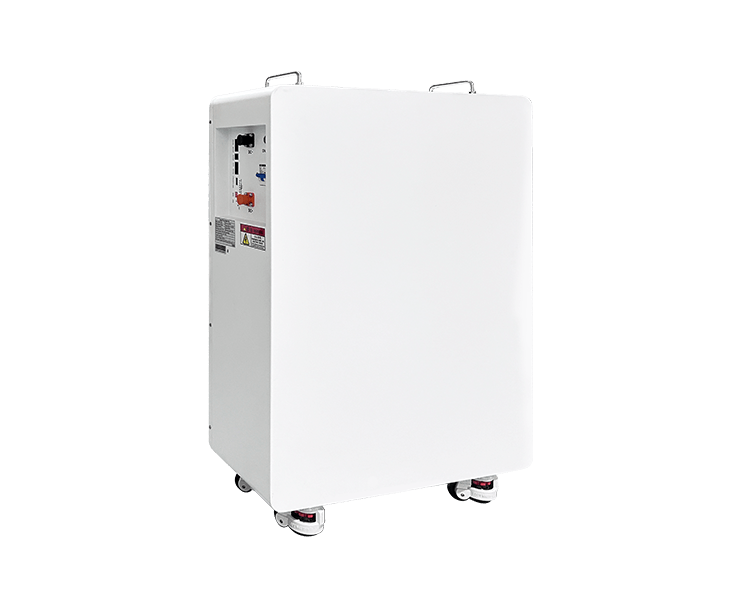

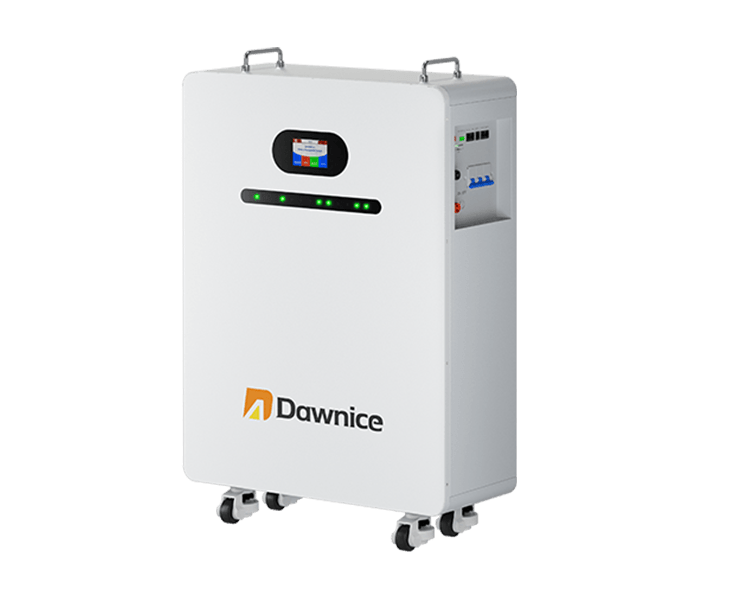

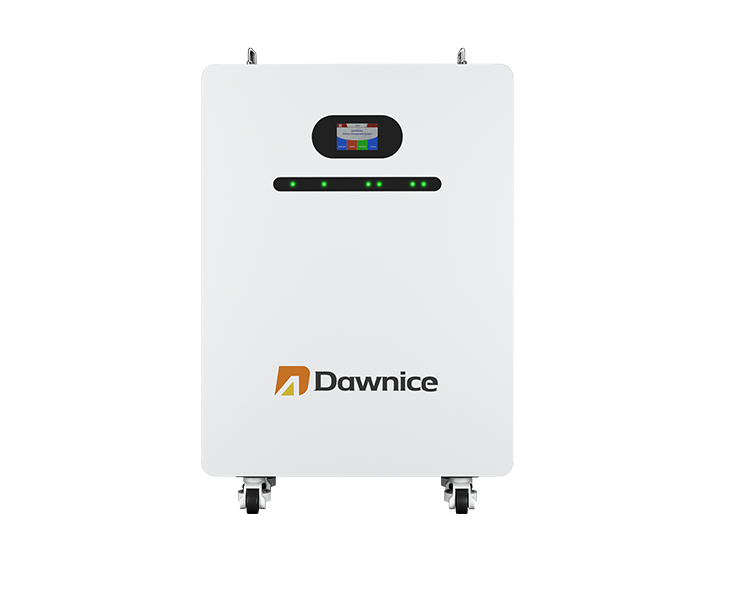

HZEB-LCT-20

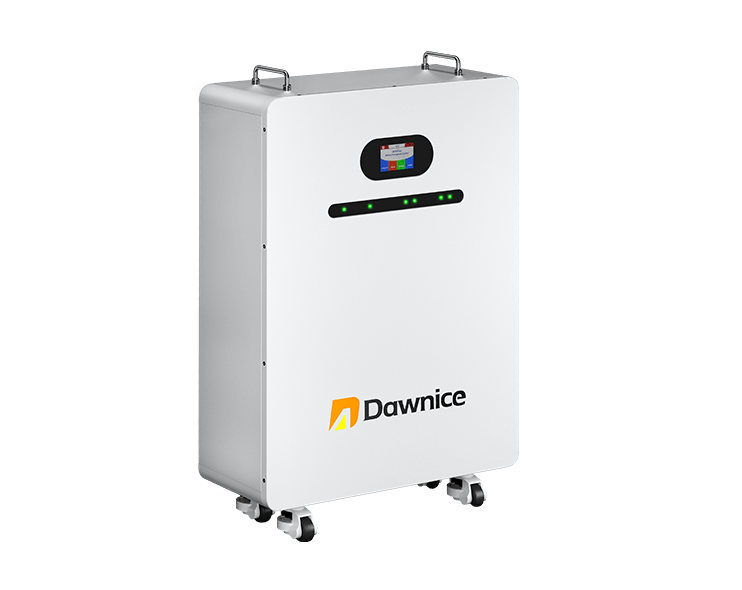

The HZEB-LCT-20 is a 20kWh home lithium battery engineered for efficient power storage and versatile installation. It offers ample capacity for long-duration backup, powering larger residential or small business systems with intelligent energy control and high performance.

Dawnice - Leading Global Energy Storage Battery Manufacturer & Innovator

Contact

Document

Features

Ground - Mounted

Datasheet Residential ESS

Intelligent

Bluetooth and Wifi

Safety

Multi-protection from self developed BMS

Easy to Scale Up

Be workable to be parallel based on 51.2V

Efficient Power Cost

Long cycle life and superior performance

Power That Performs Outdoors

Our IP54-rated 20kWh solar battery storage ensures consistent energy supply under extreme conditions. Built to withstand rain and dust, it provides reliable and efficient power for residential and commercial settings.
Intelligent Remote Management

Equipped with Bluetooth, WiFi, and mobile app support, our energy storage system allows seamless remote control. Access real-time data and adjust power settings effortlessly from anywhere.
Smart BMS for Maximum Battery Safety

Featuring precise voltage and temperature monitoring, our intelligent BMS continuously supervises the performance of the 48V 400Ah battery, identifying potential issues early to ensure safe and reliable operation.

Parameter

PERFORMANCE SPECIFICATIONS

MECHANICAL SPECIFICATIONS

SECURITY AND CERTIFICATION

ENVIRONMENTAL SPECIFICATIONS

PERFORMANCE SPECIFICATIONS

Model

HZEB-LCT-20

Product Name

20kWh Solar Battery Storage

Nominal Voltage

51.2V

Cell model/Configuration

3.2V 205Ah/16S2P

Capacity(Ah)

410Ah

Rated Energy(kWh)

20.99kWh

Max.Charge/Discharge Current(A)

200A

Voltage Range(V)

44.8~57.6V

Scalability

Up to 15 parallel

Communication

CAN/RS485

Cycle Life

≥6000Cycles@25°C, 80%DOD

MECHANICAL SPECIFICATIONS

Weight(kg)

180kg

Dimension(L/W/H)(mm)

650*265*850mm

Installation Mode

Ground Mounnted

IP Grade

IP21

SECURITY AND CERTIFICATION

Safety(Pack)

UN38.3.MSDS

Safety(Cell)

UN38.3.MSDS,IEC62619,CE,UL1973,UL2054

Protection

BMS and Breaker

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature(°C)

Charge 0°C~50°C; Discharge -10°C~-50°C

Altitude(m)

s2000m

Humidity

<90%(Non-condensing)

Relevant Cases

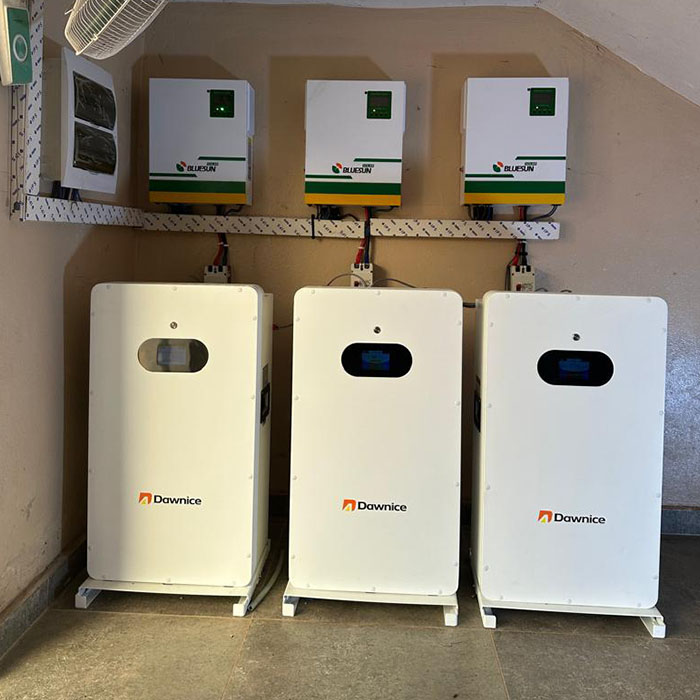

Case Study of Lithium-ion Battery Installation at American Farmers

2025/10/18

For Texas farmers facing volatile electricity markets and increasing grid instability, the Miller family's experience demonstrates how Dawnice Farm ESS safeguards agricultural operations.

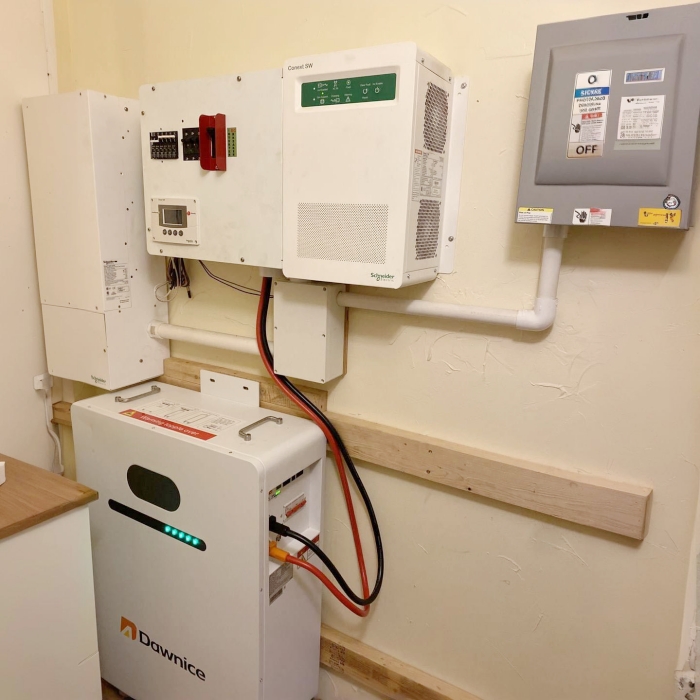

Household Energy Storage Kit Installed for the French Boss

2025/10/12

Designed for households requiring uninterrupted power for medical care, the Dawnice Life-Support ESS combines Grade A LiFePO4 batteries with zero-second switching technology to eliminate any power interruption for critical devices.

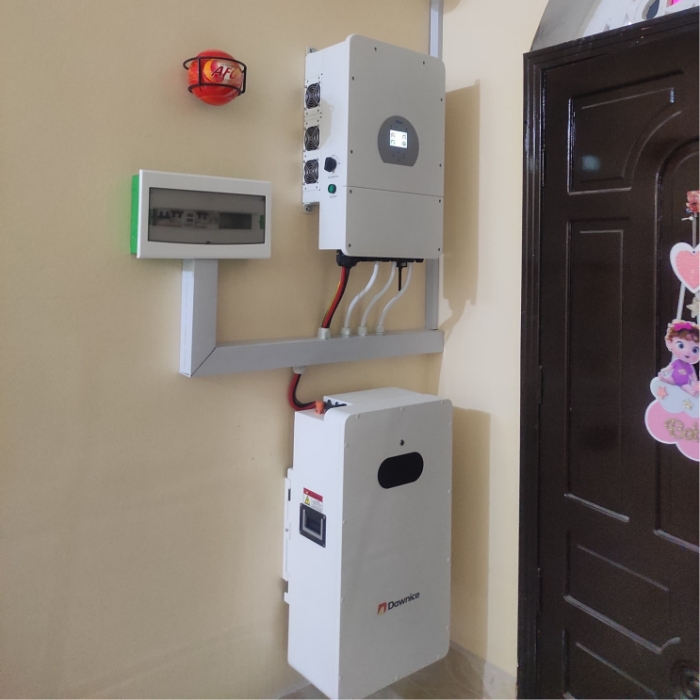

On-site Photos of Household Energy Storage Installation in Iraq, the Middle East

2025/10/16

Designed for households seeking energy resilience and cost efficiency, the Dawnice Home Energy Storage System combines ultra-safe LiFePO4 battery technology with intelligent controls.

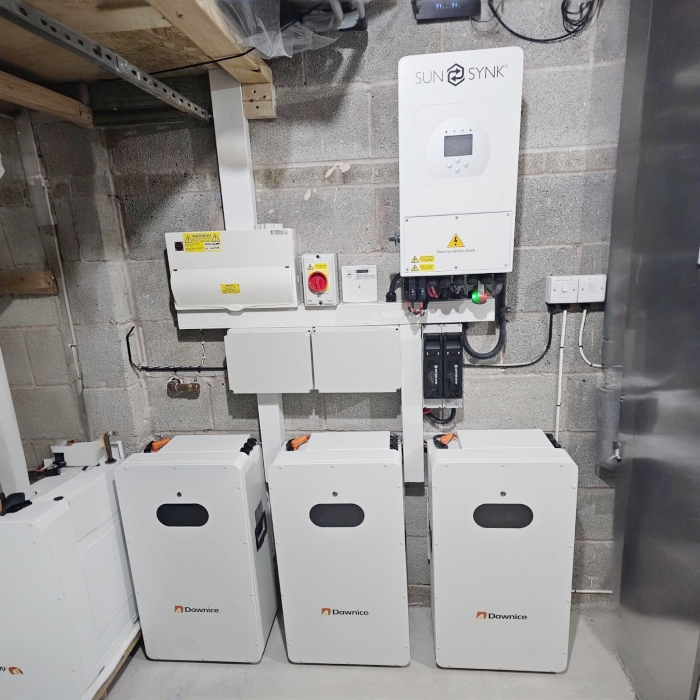

Household Wall-Mounted Energy Storage Project Deployed for UK Clients

2025/07/10

Engineered specifically for UK energy challenges, the Dawnice Wall-Mounted Energy Storage System combines advanced lithium iron phosphate technology with British household needs.

This is an installation case of a residential lithium battery for home use by an African company.

2025/10/21

At a Nigerian furniture factory facing 3-4 weekly power outages, Dawnice C&I ESS has revolutionized production stability. The 80kWh system features specialized dust and moisture protection with independent ventilation, engineered for tropical climate resilience.

Related Products

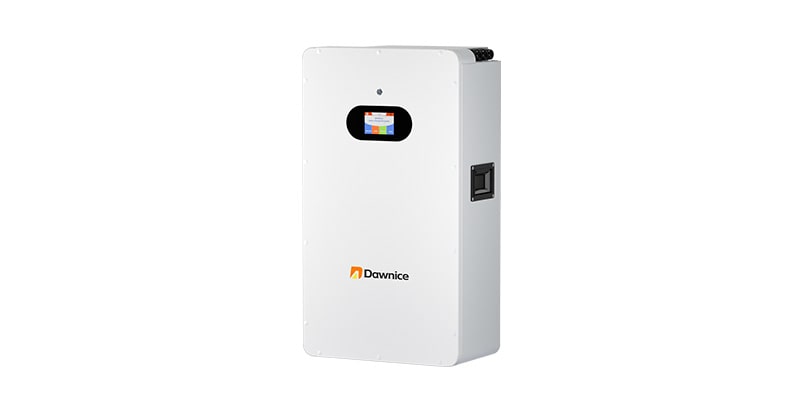

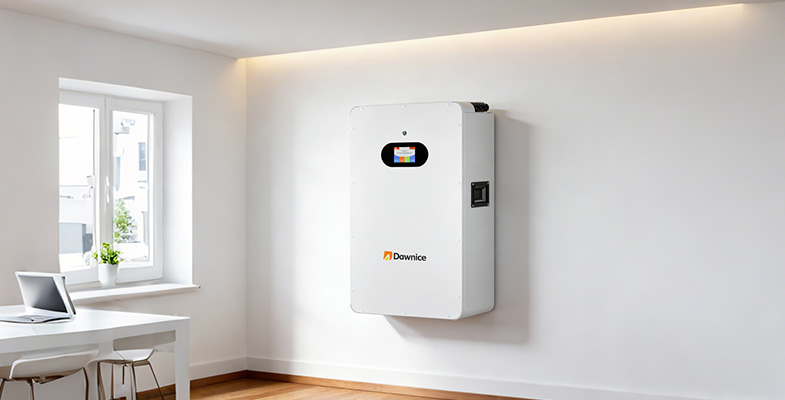

HZEB-LCT-15

The HZEB-LCT-15 is a 15kWh LiFePO4 solar battery built for flexible installation. It provides higher capacity for extended backup, supporting larger household or small business loads with smart energy management, modular expansion, and enhanced efficiency.

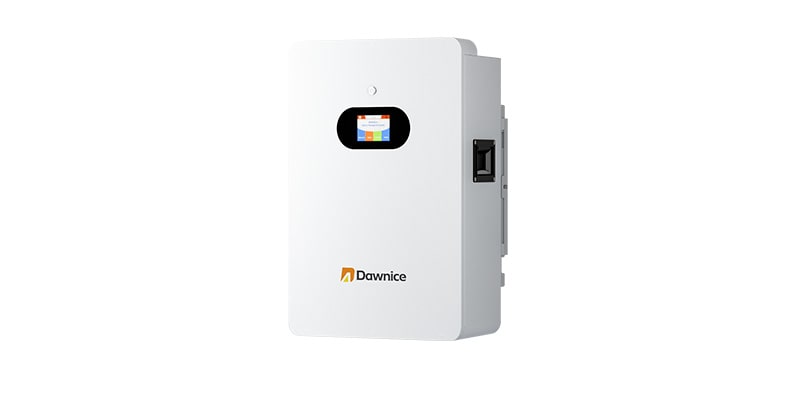

HZEB-LCT-10

The HZEB-LCT-10 is a 10kWh LiFePO4 home battery designed for wall mounting. It delivers efficient, safe, and smart energy storage, offering reliable power management and a seamless home energy experience.

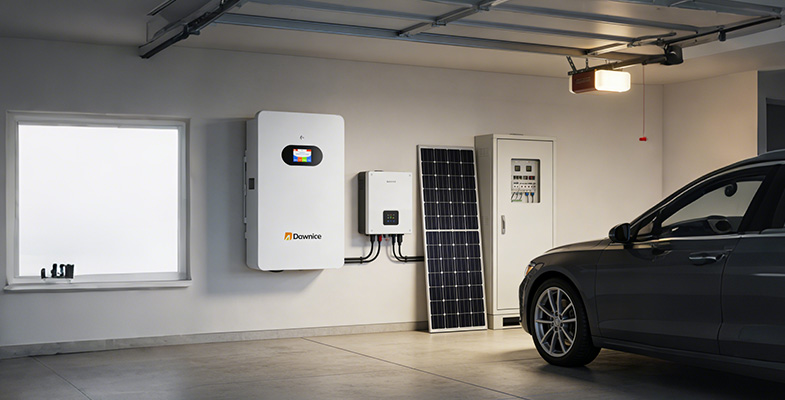

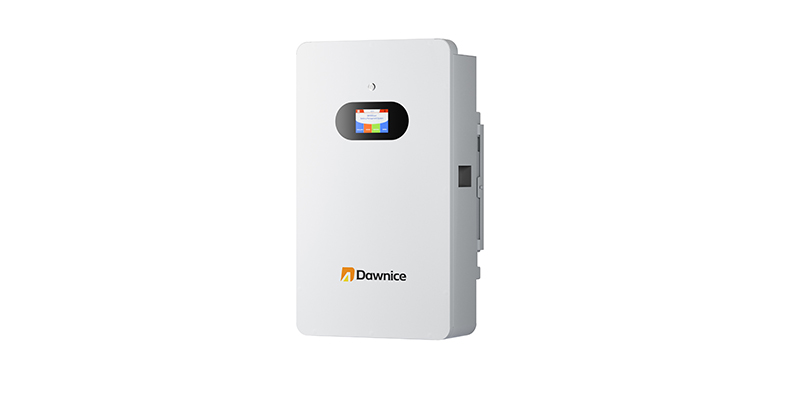

HZEB-LCT-5
