Liberate your community or business from unreliable grids and expensive diesel fuel with Dawnice's Off-Grid Energy Storage System.

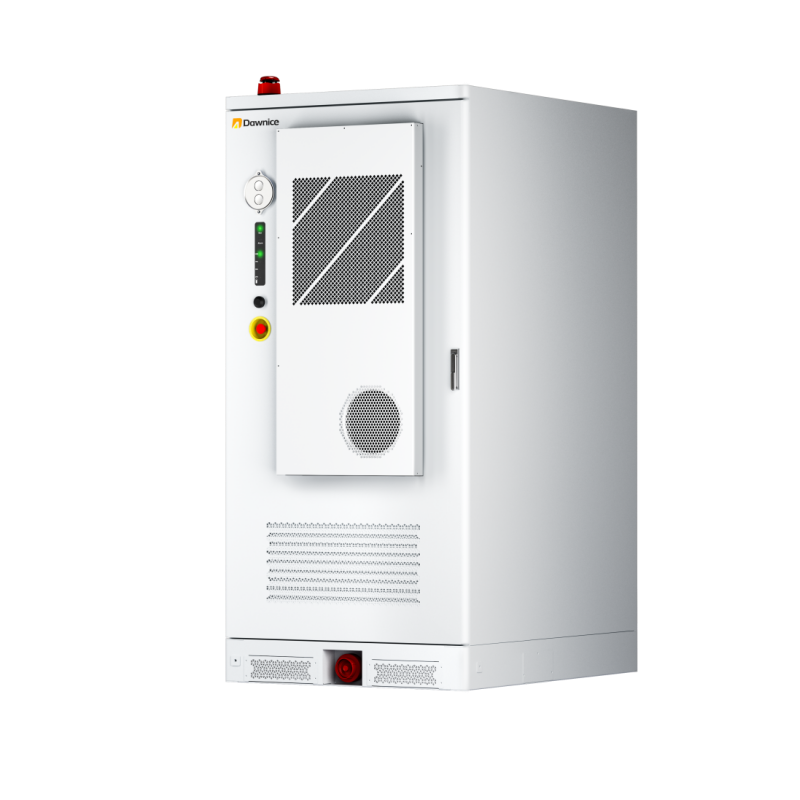

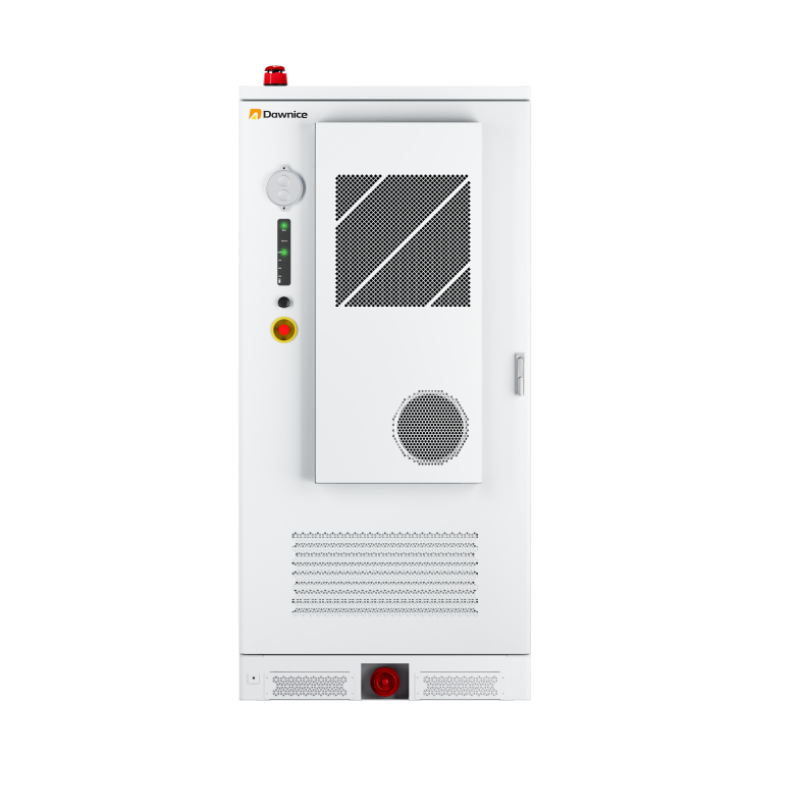

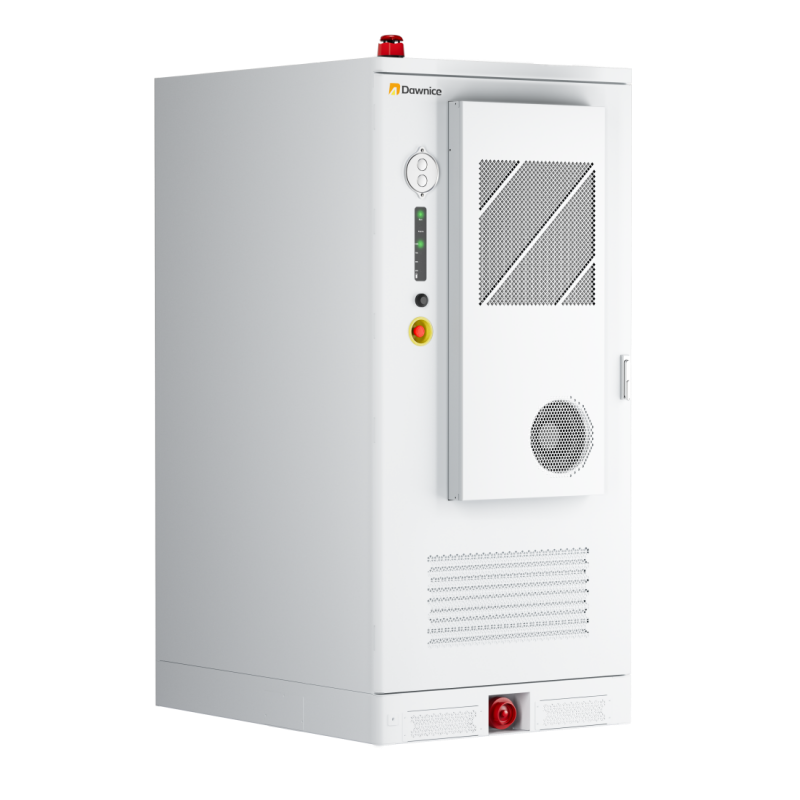

HZEB-HCT-125/522
The HZEB-HCT-125/522 is a 522kWh All-in-one ESS, featuring 125kW rated AC (grid-connected) power, LiFePO4 battery type with 8000-cycle life (@25℃, 0.5P, 90%DOD, 70%EOL), 0.99 power factor, <2% current distortion rate, IP54 protection level, air cooling method, and aerosol fire protection. It supports MODBUS TCP/RTU communication and is suitable for scenarios requiring stable grid-connected energy storage.
Features
01
Ground - Mounted
Compact design enables flexibleinstallation
02
Easily Expandable
Can be paralleled with 10 units.
03
Safety
Multi-protection from self developed BMS
04
Safety Protection
Aerosol + Water Fire
05
Efficient Power Cost
Long cycle life and superior performance
-
HZEB-HCT-125/522 All-in-One Energy Storage System: 125kW/522kWh
It adopts a highly integrated all-in-one design, which enhances battery energy density. With excellent peak-shaving and valley-filling capabilities, this system is a reliable choice for optimizing energy management and increasing revenue.
-

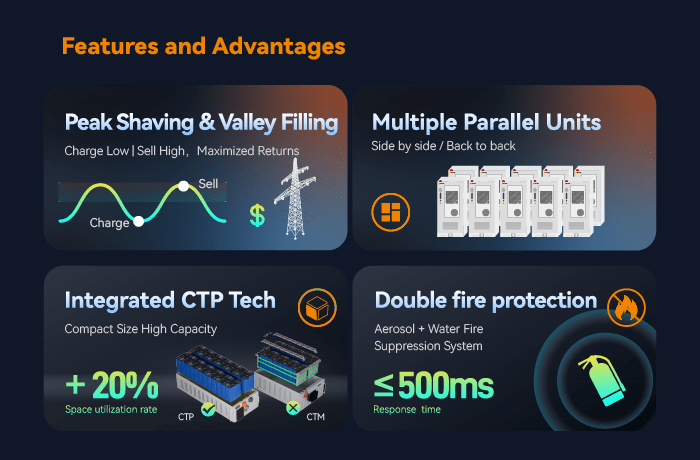

Product Advantages
The product adopts integrated CTP technology, increasing energy density by 20%. It is equipped with a dual fire protection system to ensure safety and reliability, as well as multiple parallel units to achieve profit from electricity price differences.
-
Wide-Ranging Application Scenarios
The product has broad adaptability, with its core application scenarios covering office buildings, hotels, shopping malls, data centers, hospitals, as well as industries, agriculture, charging stations, cold-chain warehouses, and more.
Parameter
PERFORMANCE SPECIFICATIONS
MECHANICAL SPECIFICATIONS
SECURITY AND CERTIFICATION
ENVIRONMENTAL SPECIFICATIONS
PERFORMANCE SPECIFICATIONS
Model
HZEB-HCT-125/522
Product Name
All-in-One Energy Storage System: 125kW/522kWh
Battery Rated Voltage
832Vdc
Configuration
2P260S
Cumulative Discharge Energy
426MWh
Rated Energy(kWh)
522kWh
Voltage Range(V)
DC 728~936V
Warranty Period
5+5 years
Cycle Life
z8000 Cycles(@25℃,0.5C,90%DOD,70%EOL)
MECHANICAL SPECIFICATIONS
Weight(kg)
5980kg
Dimension(L/W/H)(mm)
2500*2250*2300mm
Installation Mode
Ground Mounnted
IP Grade
IP54
SECURITY AND CERTIFICATION
Suppression System
Aerosol + Water Fire
Certifications
UN38 3,MSDS,IEC62619(CB),IEC63056(CB)IEC62040-1(CB),CE-EMC,IEC62477-1,EC60529
Protection
BMS and Breaker
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature(°C)
-30℃~55℃(>45℃ derating)
Altitude(m)
s2000m
Humidity
5%~90%(non-condensing)
