Liberate your community or business from unreliable grids and expensive diesel fuel with Dawnice's Off-Grid Energy Storage System.
HZEB-HCT-200

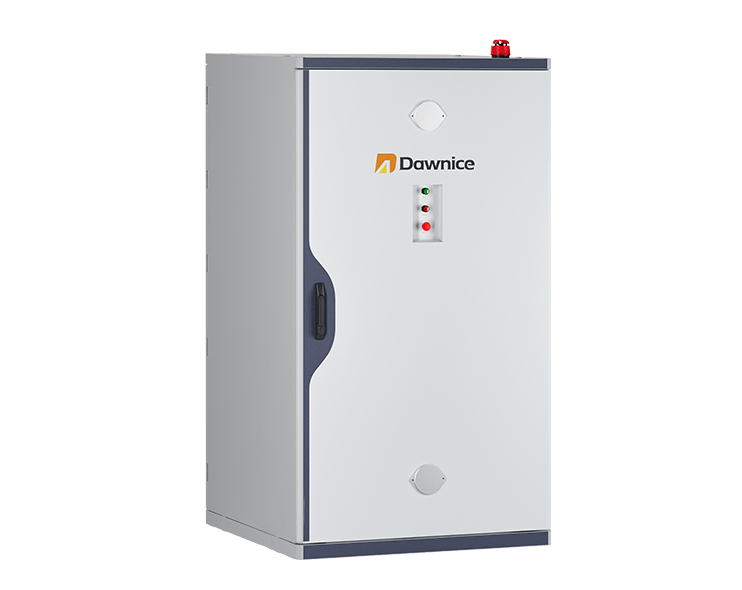

HZEB-HCT-200 is a 200kWh battery storage system built for commercial and industrial energy solutions. It provides high-capacity, stable power for peak shaving, backup, and renewable integration, ensuring efficient energy use and intelligent system control for reliable large-scale operations.
Features
01
Ground Mounted
Compact design enables flexible installation.
02
Smart Energy
Real-time monitoring and intelligent control
03
Safety
Multi-protection from self developed BMS
04

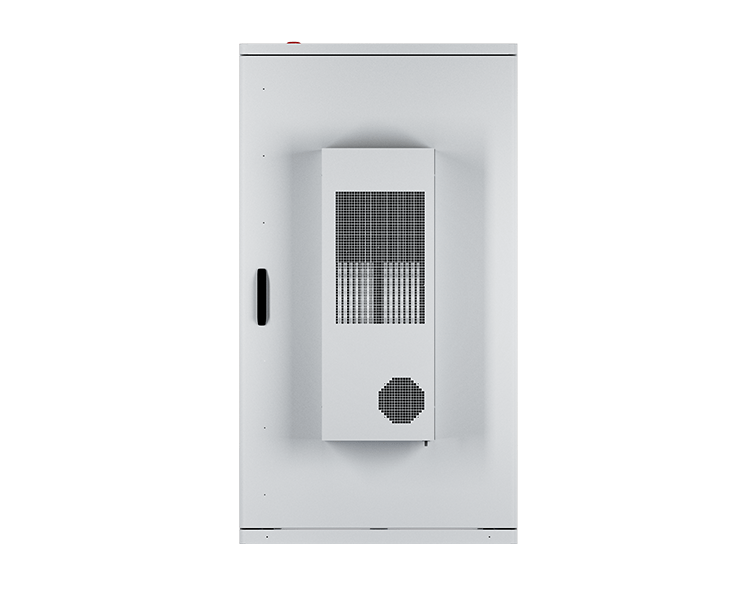

Intelligent Cooling
Smart thermal system maintains optimal performance in all climates.
05
Efficient Power Cost
Long cycle life and superior performance
-
Power That Performs Outdoors
Our IP54-rated 20kWh solar battery storage ensures consistent energy supply under extreme conditions. Built to withstand rain and dust, it provides reliable and efficient power for residential and commercial settings.
-
Intelligent Remote Management
Equipped with Bluetooth, WiFi, and mobile app support, our energy storage system allows seamless remote control. Access real-time data and adjust power settings effortlessly from anywhere.
-
Smart BMS for Maximum Battery Safety
Featuring precise voltage and temperature monitoring, our intelligent BMS continuously supervises the performance of the 48V 400Ah battery, identifying potential issues early to ensure safe and reliable operation.
Parameter
PERFORMANCE SPECIFICATIONS
MECHANICAL SPECIFICATIONS
SECURITY AND CERTIFICATION
ENVIRONMENTAL SPECIFICATIONS
PERFORMANCE SPECIFICATIONS
Model
HZEB-HCT-200
Product Name
200kw battery storage
Nominal Voltage
716.8V
Cell model/Configuration
3.2V 280Ah/224S1P
Capacity(Ah)
280Ah
Rated Energy(kWh)
200.7kWh
Max.Charge/Discharge Current(A)
140A
Voltage Range(V)
627.2~806.4V
Scalability
Scalable via parallel cabinets (typical configurations up to 4–16 units depending on PCS)
Communication
Modbus RTU
Cycle Life
≥6000Cycles@25°C, 80%DOD
MECHANICAL SPECIFICATIONS
Weight(kg)
2400kg
Dimension(L/W/H)(mm)
2335*1250*1413mm
Installation Mode
Ground Mounnted
IP Grade
IP54
SECURITY AND CERTIFICATION
Safety(Pack)
UN38.3.MSDS
Safety(Cell)
UN38.3.MSDS,IEC62619,CE,UL1973,UL2054
Protection
BMS and Breaker
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature(°C)
Charge 0°C~50°C; Discharge -10°C~-50°C
Altitude(m)
s2000m
Humidity
<90%(Non-condensing)
